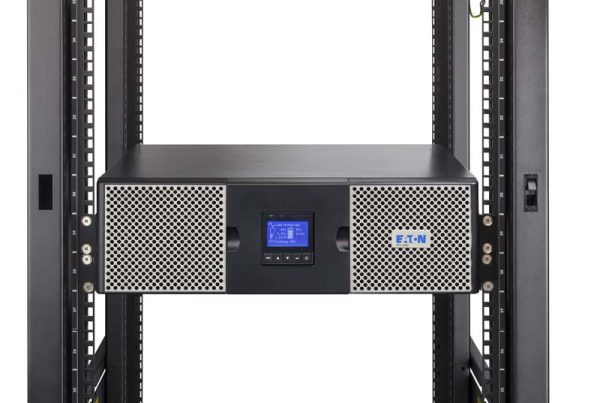

EATON 9PX 2200i 2200VA/2200W Tower/Rack USV RS-232/USB 3U 19Z Kit Runtime 5/14min Voll/Halblast

EATON 9PX 2200i 2200VA/2200W Tower/Rack USV RS-232/USB 3U 19Z Kit Runtime 5/14min Voll/Halblast

Manufacturer EATON
Manufacturer Part No 9PX2200IRT3U
Marketing Description
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Product Features
  • Graphical LCD display
    It provides clear information on the UPS’s status and measurements on a single screen which tilts 450 for ease-of-viewing.
  • Availability and flexibility
    The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems.
  • Paralleling functionality
    Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology!
  • Load segment control
    It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.
Device Type UPS – Power Factor Correction (PFC) – rack-mountable / external
Height (Rack Units) 3U
Power Device
UPS Technology On-line
Input Voltage AC 200/208/220/230/240 V
Input Voltage Range AC 176 – 276 V
Input Wiring 1-phase
Frequency Required 40 – 70 Hz
Input Connectors 1
Power Output Connectors Details 8 x power IEC 60320 C13

2 x power IEC 60320 C19 16A

Output Voltage AC 200/208/220/230/240 V
Power Capacity 2200 Watt / 2200 VA
Efficiency 98%
Run Time (Up To) 44 min at 300 Watts

23 min at 500 Watts

15 min at 800 Watts

9 min at 1200 Watts

5 min at 1800 Watts

Remote Management Interface RS-232, USB
Expansion / Connectivity
Interfaces 1 x management (USB)

1 x management (RS-232)

Expansion Slots 1 (total) / 1 (free) x Expansion Slot
Features LCD display, internal bypass
Compliant Standards FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1
Software / System Requirements
Software Included Intelligent Power Software Suite
Environmental Standards
Manufacturer Warranty
Service & Support Limited warranty – 3 years

Limited warranty – batteries – 2 years

Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Sound Emission 40 dB
Dimensions & Weight
Width 44 cm
Depth 48.5 cm
Height 13 cm
Weight 24.5 kg
Technical data provided by third party. We assume no liability for errors within these data.
